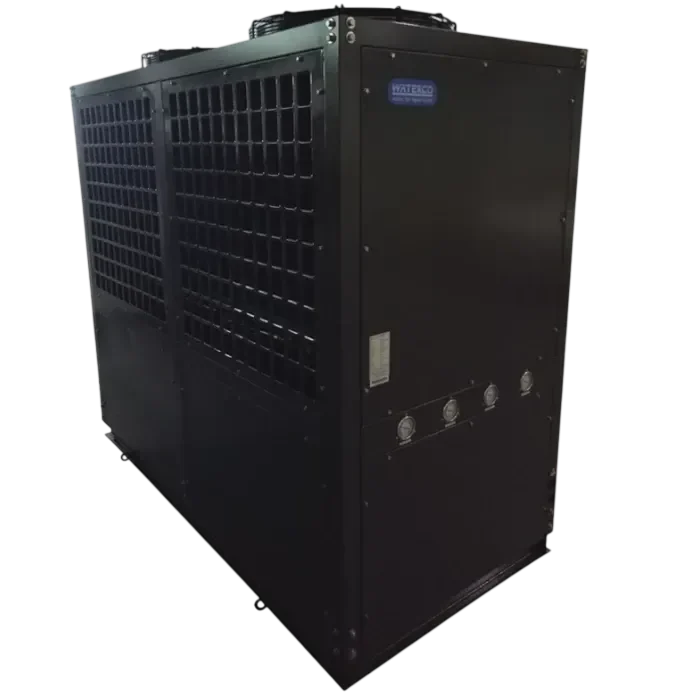

Waterco's ElectroHeat Pro Swimming Pool Heat Pump
The new generation Electroheat PRO series of heat pumps is the latest advancement in commercial size swimming pool heating. The heat pumps have been designed to deliver efficient and cost effective large pool heating in an easy to operate and install package.
Overview of Waterco's ElectroHeat Pro 60 Swimming Pool Heat Pump
- Hydrophilic aluminium evaporator.
- Electronically controlled temperature management.
- Hermetic scroll compressors.
- Titanium heat exchangers.
- R410A Refrigerant.
- Energy-saving heating solution.
- Delayed compressor operation as safety feature.
Air source heat pump is the innovative heating equipment, which emphasizes on conservation in energy generation and environmental friendly technology. It is a highly efficient machinery in absorbing and transferring energy.

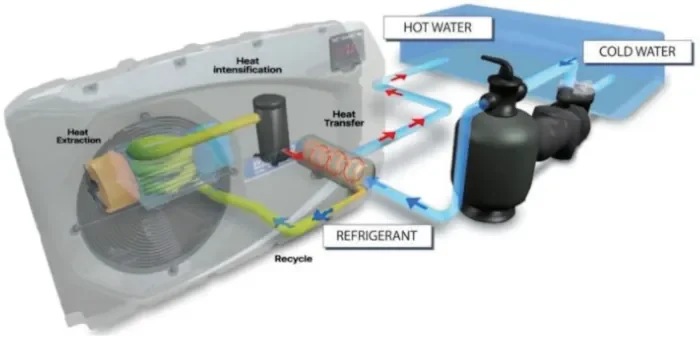

Its operation principle is based on the Reversed Carnot Cycle By continuously absorbing the surrounding air, the Electroheat Pro Heat Pump is able to conduct heating at a fast rate while ensuring energy conservation and environmental friendliness. The high efficiency of Electroheat Pro Heat Pump is coupled with low operating cost. Its power consumption is only a quarter to that of electrical water heater.

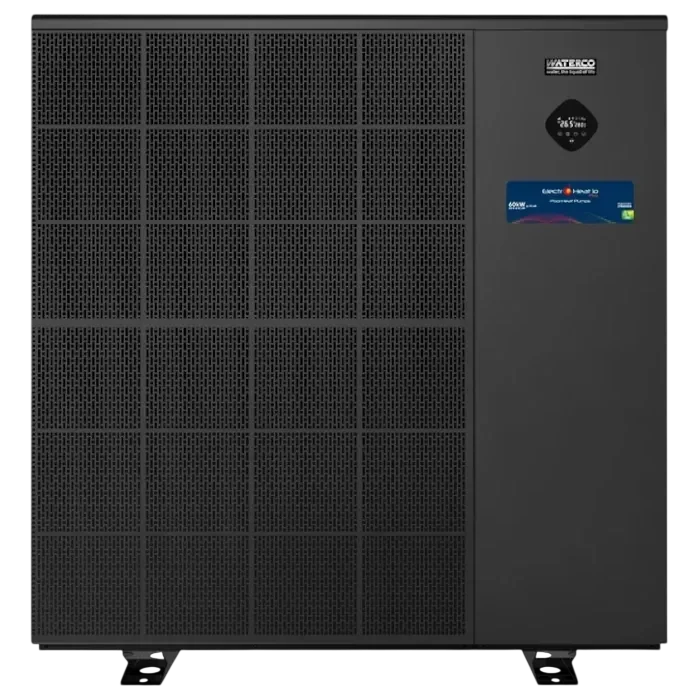

The Electroheat PRO 60 inverter pool heat pump which is a highperformance, energy efficient pool heat pump designed for commercial applications. It’s known for its powerful heating capacity and innovative inverter technology, which allows for precise temperature control and significant energy savings.
Key Features:
- Inverter Technology: This advanced technology allows the heat pump to adjust its power output based on the required heating load, optimizing energy consumption and reducing operating costs.
- Heating, Cooling and Auto mode selection
- Quiet Operation: The heat pump operates quietly, minimising disturbances to pool users and surrounding areas.
- High Heating Capacity: The PRO 60 is capable of efficiently heating and cooling large commercial pools, ensuring optimal water temperatures year-round.
- Energy Efficiency: The heat pump’s advanced design and inverter technology contribute to its high coefficient of performance (COP), resulting in reduced energy consumption and lower electricity bills.
- Durable Construction: The PRO 60 is built with high-quality materials, including a corrosion-resistant titanium heat exchanger and aluminium alloy casing ensuring long-lasting performance.
- Easy Installation and Maintenance: The unit is designed for easy installation and maintenance, reducing downtime and increasing convenience.

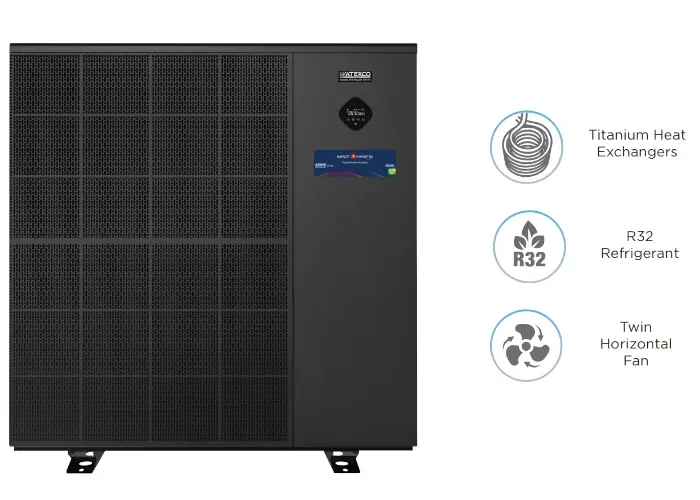

Waterco's ElectroHeat Pro 60 Swimming Pool Heat Pump's Technical Specifications
| Specifications | ||
|---|---|---|
| Model Number | PRO60 | |
| Power Mode | Heating capacity (kW) | 60.0 |
| Perfect Mode | Heating capacity (kW) | 48.5 |
| COP range | 7.5 – 15.1 | |
| Average COP at 50% Speed | 12.0 | |
| Performance Condition: Air 15°C / Water 26°C / Humid. 70% | ||
| Power Mode | Heating capacity (kW) | 42.0 |
| Perfect Mode | Heating capacity (kW) | 34.0 |
| COP range | 5.6 – 8.1 | |
| Average COP at 50% Speed | 7.5 | |
| Performance Condition: Air 35°C/ Water 28°C/ Humid. 80% | ||
| Cooling capacity (kW) | 25.0 | |
| Technical Specifications | ||
| Rated input power (kW) | 1.88 – 7.50 | |
| Rated input current (A) | 2.72 – 10.87 | |
| Sound level at 1m dB(A) | 51.0 – 59.0 | |
| Sound level 50% at 1m dB(A) | 53 | |
| Sound level at 10m dB(A) | 30.0 – 39.0 | |
| Operating air temperature (°C) | -20 – 43°C | |
| Compressor | Mitsubishi DC Inverter Compressor | |
| Heat exchanger | Twisted Titanium Heat Exchanger | |
| Fan direction | 2 X Horizontal | |
| Power supply | 400-415V / 3 Ph / 50Hz | |
| Water Flow Rate (LPM) | 330 ~ 400 | |
| Water connection (mm) | 65mm slip | |
| Net dimension LxWxH (mm) | 460 X 1545 X 1630 | |
| Refrigerant | R32 – 4800 grams | |

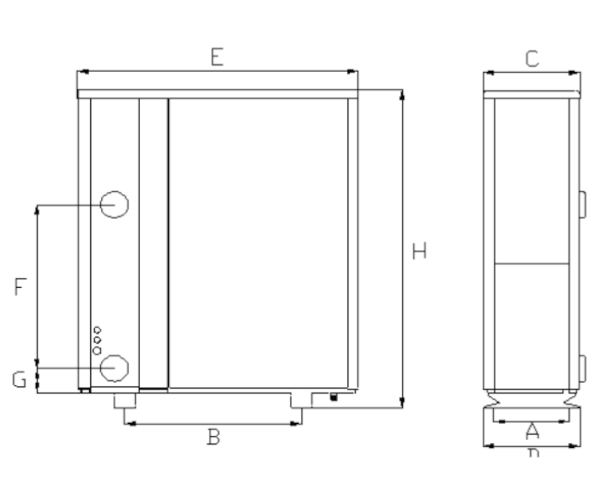

Clearance of Waterco's ElectroHeat Pro Swimming Pool Heat Pump
| Model / Size (mm) / Name | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| IMC60WAT | 391 | 1055 | 458 | 459 | 1545 | 840 | 123 | 1630 |

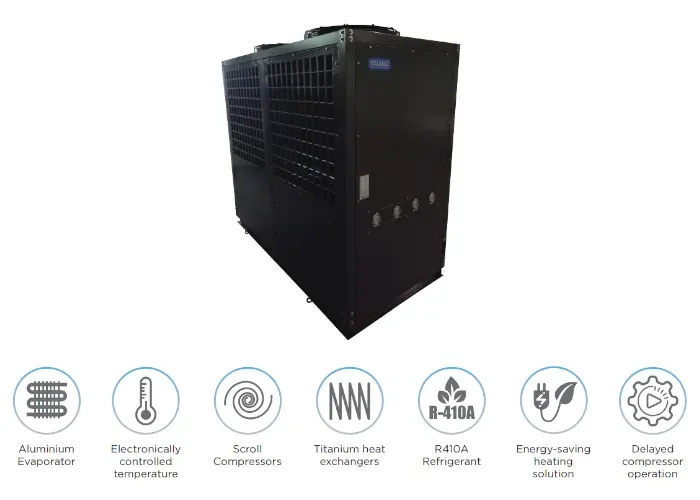

Overview of Waterco's ElectroHeat Pro 110 Swimming Pool Heat Pump
The Electroheat PRO 110 heat pump has been designed to deliver efficient cost effective large pool heating in an easy to operate and install package.
- Titanium twisted coil exchangers for maximum heat transfer.
- Blue fin dipped evaporators for enhanced heat absorption.
- Twin high performance 12 HP scroll compressors.
- Twin fans for maximum airflow.
- Automatic hot gas de-icing for cold climates.
- Easy to connect single in / out 80mm water connections.
- Easy cable entry and electrical connection access.
- Integral flow switch protecting equipment from operation when no flow is detected.
- Noise emission: 58 dBA@ 3 metres.
Technical Specifications of Waterco's ElectroHeat Pro 110 Swimming Pool Heat Pump
| Specifications | |
|---|---|
| Model Number | PRO110 |
| Nominal Heating Cooling Capacity* | |
| Power Output Heat (27/80) | 110 kW (376,000 BTU) |
| Power Output Heat (24/27/70) | 105 kW (358,000 BTU) |
| Power Output Heat (15/27/70) | 85 kW (290,500 BTU) |
| Power Output Heat (-5/27/63) | 46 kW (157,900 BTU) |
| Power Output Cool (35/27/70) | 60 kW (205,800 BTU) |
| Coefficient of Performance@27/27/80 (COP) | 5.36 |
| Compressor | (2 ×) 12 HP |
| Water Flow & Plumbing Characteristics | |
| Water Bypass Typev | Ext. field install |
| Min/Max Water Flow Rate (LPM) | 650 – 750 |
| Min/Max Water Inlet Temperature (°C) | 14 – 40 |
| Plumbing Connection Size (Slip) (mm) | 80 |
| Electrical Characteristics | |
| 50Hz Dual Rated Supply Voltage (VAC) | 380 – 415 |
| Supply Voltage Phase | 3 |
| Max HACR Breaker or Fuse (AMP) | 60 |
| Average unit input current (AMP) | 40 |
| Maximum unit input current (AMP) | 54 |
| Normal power consumption (kW) | 16.6 |
| Max. Fan Speed (RPM) | 900 |
| Fan Motor | Axial |
| Fan Full Load Amp (FLA) each | 1.4 |
| Air Flow (CFM) each | 9500/ 5613 |
| Fan Diameter (mm) | 630 |
| Min/Max Air Inlet Temperature (°C) | >0/ 40 |
| Refrigerant Characteristics | |
| Refrigerant Type | R-410A |
| Initial Factory Refrigerant Charge (kg) | (2 ×) 5.5 |
| Evaporator | Hydrophilic aluminium |
| Heat Exchanger | Titanium in PVC |
| Expansion system | (2 ×) Expansion valve |
| Physical Characteristics | |
| Cabinet Construction | Powder coat steel |
| Colour | Black |
| Weight (kg) | 530 |
| Dimensions (W x L x H) (mm) | 900 x 2000 x 1880 |
| Noise Emission Characteristics | |
| Noise Emission (dBA) | 58@3 m |
| *(27/27/80) = Air Temp: 27°C/ Water Temp 27°C/ Humidity 80% | |

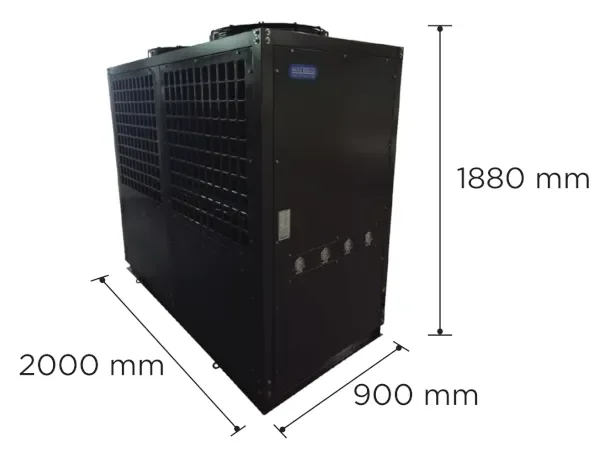

Dimensions of Waterco's ElectroHeat Pro 110 Swimming Pool Heat Pump

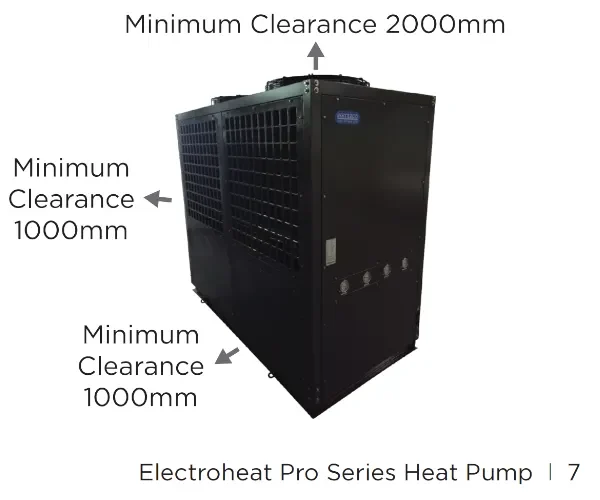

Clearance of Waterco's ElectroHeat Pro 110 Swimming Pool Heat Pump

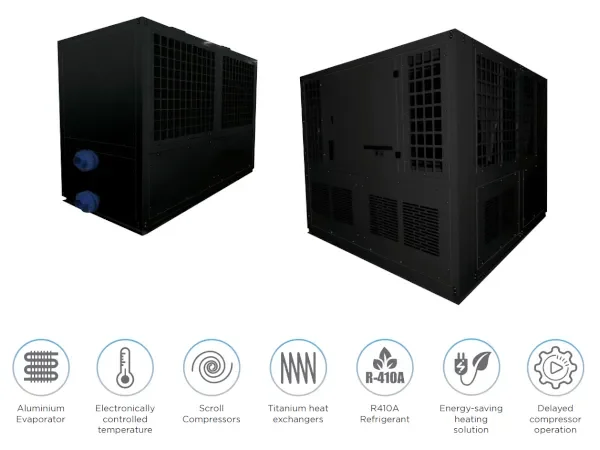

Overview of Waterco's ElectroHeat Pro 150 - 250 Swimming Pool Heat Pump
The new generation Electroheat PRO 150 and 250 series of heat pumps is the latest advancement in commercial size swimming pool heating. The heat pumps have been designed to deliver efficient and cost effective large pool heating in an easy to operate and install package.
- Hydrophilic aluminium evaporator.
- Electronically controlled temperature management.
- Hermetic scroll compressors.
- Titanium heat exchangers.
- R410A Refrigerant.
- Energy-saving heating solution.
- Delayed compressor operation as safety feature.
Clearance of Waterco's ElectroHeat Pro 150 Swimming Pool Heat Pump

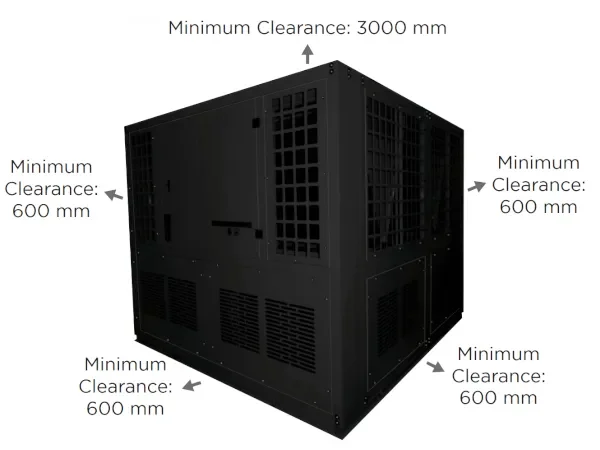

Clearance of Waterco's ElectroHeat Pro 250 Swimming Pool Heat Pump
Technical Specifications of Waterco's ElectroHeat Pro 250 Swimming Pool Heat Pump
| Specifications | ||||
| Model | Electroheat PRO 150 | Electroheat PRO 250 | ||
|---|---|---|---|---|
| Air 24°C/Water 27°C (Nominal) | Heating Capacity | kW | 150 (511,500 BTU) | 250 (852,500 BTU) |
| Heating Input | kW | 29 | 49 | |
| COP | 5.17 | 5.10 | ||
| Air 27°C/Water 27°C | Heating Capacity | kW | 157 (537,000 BTU) | 262 (895,000 BTU) |
| Heating Input | kW | 29 | 50 | |
| COP | 5.41 | 5.24 | ||
| Air 15°C/Water 27°C | Heating Capacity | kW | 112 (384,500 BTU) | 191 (652,500 BTU) |
| Heating Input | kW | 27 | 47 | |
| COP | 4.14 | 4.06 | ||
| Air -5°C/Water 27°C | Heating Capacity | kW | 66 (225,500 BTU) | 110 (375,500 BTU) |
| Heating Input | kW | 23 | 39 | |
| COP | 2.86 | 2.82 | ||
| Air -15°C/Water 27°C | Heating Capacity | kW | 45 (153,000 BTU) | 75 (255,500 BTU) |
| Heating Input | kW | 20 | 35 | |
| COP | 2.25 | 2.14 | ||
| Air 35°C/Water 27°C | Cooling Capacity | kW | 74 (255,500 BTU) | 122 (418,000 BTU) |
| Cooling Input | kW | 31 | 47 | |
| COP | 2.38 | 2.59 | ||
| Max. Current | A | 80 | 132 | |
| Power Supply | V/Ph/Hz | 380 – 415V/3Ph/50Hz | 380 – 415V/3Ph/50Hz | |
| Compressor | Type | Scroll | Scroll | |
| Quantity | pcs | 2 | 4 | |
| Capacity | kW | 44 | 37 | |
| Refrigerant Type | Type | R410a | R410a | |
| Quantity | kg | 6.5 × 2 | 5.5 × 4 | |
| Evaporator | Type | Hydrophilic aluminium/ φ9.52 inner groove tube | Hydrophilic aluminium/ φ9.52 inner groove tube | |
| Number of rows | 3 | 2 | ||
| Fin spacing | mm | 1.8 | 1.8 | |
| Fan motor | Speed | 2-speed | 2-speed | |
| Quantity | pcs | 2 | 4 | |
| Water Flow Switch | Built-in | Built-in | ||
| Controller | Multi System Controller with Large LCD Monitor | Multi System Controller with Large LCD Monitor | ||
| Noise | dB(A) | 60 | 65 | |
| Water Connection | mm | 90 (Metric) | 110 (Metric) | |
| Water Flow Rate | Minimum | L/h | 25,800 | 43,000 |
| Maximum | L/h | 65,000 | 110,000 | |
| Dimension | L-W-H | mm | 2000-980-1970 | 2000 – 2160 – 2000 |
| Weight | Net Weight | kg | 600 | 1,020 |
Warranty
| Heat Pump Parts | Domestic | Commercial |
|---|---|---|
| Compressor | 3 years | 1 year |
| Titanium Heat Exchanger | 10 years | 1 year |
| All other components | 2 years | 1 year |
Included In The Box
Waterco’s ElectroHeat Pro Swimming Pool Heat Pump
Proof of Purchase
1 Year Commercial Warranty
