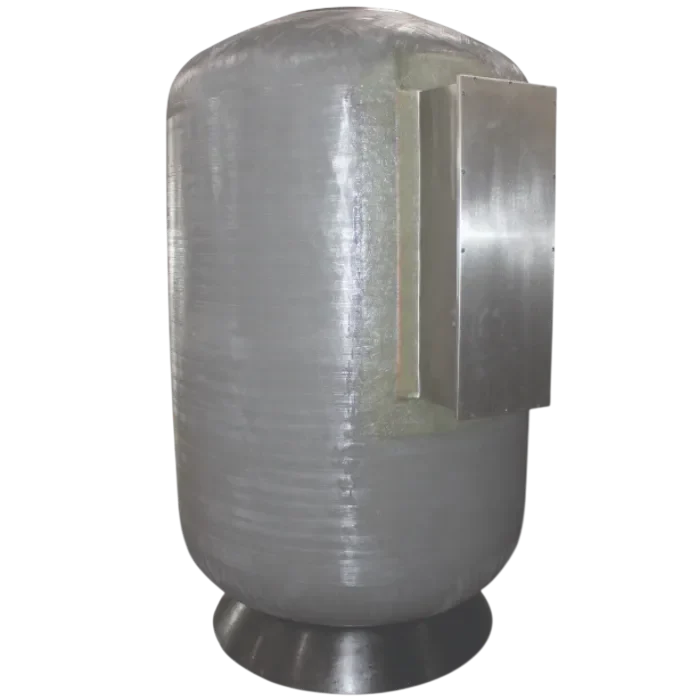

VitaHeat's Fibre-Reinforced Plastic Calorifier Tank
First in the market of producing calorifier tanks with fibre-reinforced plastic for added durability, pulling forth a supply of hot water in high thermal temperatures across sudden open tap needs.
- 500 – 5,000 Litres of customisable hot water storage.
- 2-years full-warranty availability.
- Pairs with electric boiler, & also air-source heat pumps.
- Inert construction (non-leeching with regulatory testing).
- Totally-enclosed tank for better pressurisation & less heat loss.
- Lighter in weight.
Readily Access Your Hot Water Through Storage
Open Tap & Release
VitaHeat’s fibre-reinforced plastic (FRP) calorifier tanks are always ready to be supplying steaming hot water at the open of a tap.
Customisable Sizing
Your requested calorifier tank can be specially built to store up to 5,000 Litres worth of scalding water.
Energy-Saving Centralisation
Having a centralised electric boiler, or a heat pump with a calorifier tank is more energy-efficient by reducing wasted thermal energy than running multiple individually-installed water heaters across the different rooms.
Safe For All Levels of Consumption
Various regulatory testing and in-house performance evaluation was conducted to prove VitaHeat’s fibre-reinforced plastic calorifier tanks do not leech out chemicals. This is achieved so through the materials that are chemically inert. Safe for consumption, durable for the long-haul.
- Chemically-Inert Inner Construct
- Laboratory-Tested
- Regulatory Approved
- For All User Application
- Enhanced Safety
- Better Consumers' Trust
Thermal Insulation Maximised
VitaHeat’s fibre-reinforced plastic-based calorifier tanks are completely enclosed to reduce temperature loss through diffusion, which maximises thermal insulation of hot water storages. And because less burner and heating element cycles are conducted, VitaHeat’s FRP calorifier prolongs its own shelf-life of use. Boiling to reheat is also quicker with initial higher temperatures, enabling a faster recovery time.
- Completely Enclosed
- Lower Energy Bill
- Minimises Boiler Room Overheating
- Faster Recovery Time
- Extends Equipment Lifespan
Lightweight
Fibre-reinforced plastic is robust, with high tensile strength of fibres and low-density polymer resin combined in application. This distributes weight load efficiently, with the result of using these materials into calorifier tanks to be transporting and rigging (installation) much easier.
- High Strength-To-Weight Ratio
- Resists High Tension
- No Rusting (Unlike Stainless Steel)
- Less Mass
- Load Sharing
- Minimal Maintenance
Reliability Is With Fibre-Reinforced Plastic Calorifier Tank
High-Pressure Design
VitaHeat’s calorifier tanks are heavy-duty by design, and is capable of withstanding large amounts of pressure available. These are achieved through certain attributes as found:
- Cylindrical Shape: The geometric shape of calorifier tanks makes internal pressure evenly distributed across all sides, preventing stress concentration that defects the hot water storage system into mechanical failure.
- Pressure Relief Valve (PRV): VitaHeat’s FRP calorifier tanks is set to open once internal pressure reaches a certain psi / bar to remove excess hot water out.
- Expansion Vessel: A rubberised bladder with trapped air from one side to absorb water volume expansion, retaining pressure within a safe yardage.
Essential Machinery
The fibre-reinforced plastic calorifier tank remains an essential hardware that is part of the hot water system. It is always paired with a heat pump, or a electric boiler in the pumping room to ensure continuous steaming water can be flown as needed.
- High-Demand Supply: For hotels, hospitals, marine vessels, schools, and others requiring a steady, uninterrupted flow of boiling water, the FRP calorifier tank remains an essential piece of equipment to supply the usage.
- Storing Thermal Energy: As hot water are well stored in thick forms of calorifier’s insulation, high temperatures remains in steady for long periods until it’s ready to be used.
Hygiene And Safety
Keeping large volumes of blistering hot water within the calorifier tanks has made the complete water supply safe from bacterial and fungi growth. The resulting benefit keeps the hydration application hygienic for versatile uses.
- Safe Delivery: At scalding hot water, travelling through the long piping network keeps the fluid safe and clean.
- Separated Fluid Circuit: Fresh domestic water system carrying supplies from Air Selangor (or your local state water supplier) is completely separated from this heating medium.

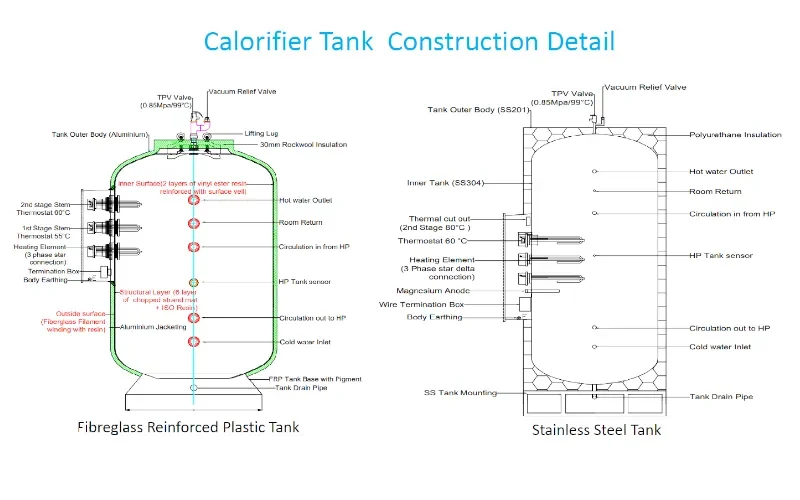

Schematic And Technical Details Of Fibre-Reinforced Plastic Calorifier Tank

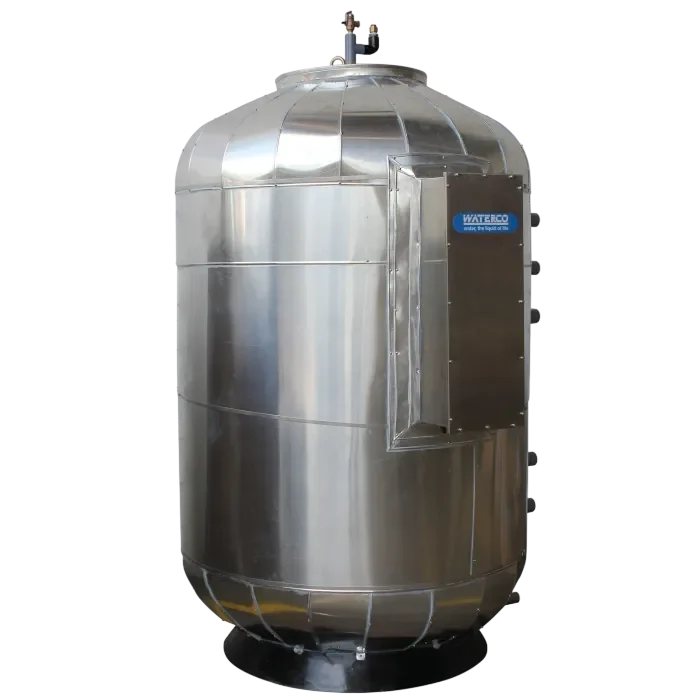

Stainless Steel And Fibre-Reinforced Plastic Calorifier Tank Construction Detail
Technical Specification
| Model | VFC-450 | VFC-1200 | VFC-2000 | VFC-3500 | VFC-5500 | |
|---|---|---|---|---|---|---|
| Volume | 450 L | 1,200 L | 2,000 L | 3,500 L | 5,500 L | |
| Dimension (mm) | A | 1850 | 2100 | 2200 | 1800 | 2400 |
| B | 200 | 200 | 200 | 200 | 200 | |
| C | 700 | 900 | 1200 | 1600 | 1600 | |
| Material | Fibre Reinforced Plastic | |||||
| Backup Heater | 3 x 3 kW | 6 x 3 kW | * Back up heater power rating can be customized to match the requirement | |||
| Pressure | 500 kPa | |||||
| Dry Weight | 110 kg | 220 kg | 370 kg | 540 kg | 880 kg | |
| *Horizontal type is available upon request *Optional design available for external casing | ||||||
Detail Connection of Electrical Components In VitaHeat's Calorifier Tank Types
Current / Voltage of Heating Element Connection
